2021 Nobsound Home Audio Tube Amplifiers DIY Kit 6Z4 + 6N2 + 6P1 Stainless Steel Shell Power Output 2 * 4W AC110V / 220V

2021 Nobsound Home Audio Tube Amplifiers DIY Kit 6Z4 + 6N2 + 6P1 Stainless Steel Shell Power Output 2 * 4W AC110V / 220V

Prezzo di listino €91,39 EUR
Prezzo di listino €91,39 EUR Prezzo scontato €91,39 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Color
Voltage (V)

SPECIFICATIONS

Tube Amplifiers: Nobsound

Package: Yes

Origin: CN(Origin)

Model Number: 6Z4+6N2+6P1

Maximum Power Per Channel: 4W

Channels: 2 (2.0)

Certification: CE

Brand Name: Nobsound




Korean YuoTube:https://www.youtube.com/watch?v=rsfH6rgDeW8
Korean YuoTube:https://www.youtube.com/watch?v=k7MuRQlGngE

This is a 6Z4+6n2+6p1 fever mini amplifier kit,Some customers who have purchased before do not understand that the problem of welding is more prominent. It is recommended that friends who have not been in contact with the installation of the kit do not buy it lightly. It may cause losses. You can choose the finished machine to enjoy the music!

Our shop provides finished machines, address:https:https://www.aliexpress.com/item/1005001880142495.html?spm=5261.ProductManageOnline.0.0.23db4edfF42vkN


If you want to practice, you can refer to the following video, but if you have not been exposed to such products, please choose a finished machine:https://www.youtube.com/watch?v=0KxtS-y64tk&list=PLa1Yh-FdwurhLv08TTFbkvHNAVAoO_pXf&index=1

If you don’t know how to solder, you can use products with better sound quality and add Bluetooth and USB inputs:https://www.aliexpress.com/item/1005002015086894.html?spm=5261.ProductManageOnline.0.0.67c74edfPBV7DQ


Everyone's opinions, suggestions, and criticisms of me and the product are support and encouragement to me. I must create a world-class cannon-cheap and good sound, so that more people can enjoy the happy feeling of ears. By hearing good voices, improve the quality of life of the ears. Get rid of the veil of unattainable mystery and high price of tube amps.
The output power is about 4W, with a speaker with a sensitivity above 90db
Chassis size 31*17*4.8cm Power supply 76*40 230v 0.15a, 3.15v*2 3a 75w output transformer 5k 66*32 8w

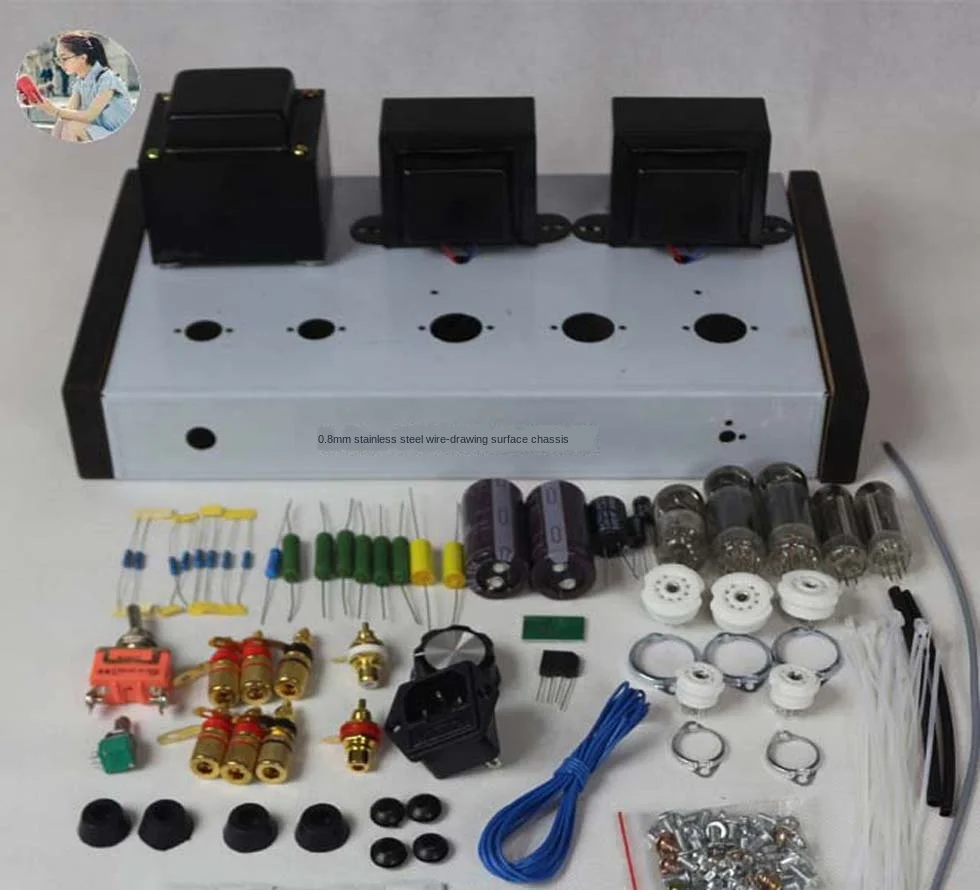

2 wooden side panels
Power transformer one 220v 0-230v 0.15a3.15v 0 3.15v3a 76*40
Output Transformer Two 66*32(22*32) z11 0.35 piece 3 clip 2 winding Primary 5k Secondary 0 4 8
Chassis*1
Chassis foot *4
Signal input socket *2
Output terminal *6
Power socket*1
Power cord Self-provided (that is, the power cord on the computer)
Switch*1
Potentiometer 100K*1
Potentiometer knob*1
6n2 stock gallbladder*1
6p1*2
6z4*2
Small nine-legged socket *3
Rectifier bridge*1
330uf/450v *1
47u/f400v *1
22uf/400v*1
100uf25v*2
0.33uf/630v*2
2k*2
150 k*2
470k*2
75k*2
18k*2
270 *26w
240*1 5w
Double core shielded wire 30cm
Casing 15cm
Welding line 2m
13mm each of 3mm4mm screws


Please give us a five-star rating if you are using it well!
